Complete Guide: Assembling & Operating Your Powder Bottle Filling Line
(Note: Ensure proper power and air supply connections before operation)
Before beginning mass production, carefully follow our step-by-step assembly and operation instructions to ensure optimal machine performance.
Assembly Instructions
Step 1: Install the Conveyor Belt
-
Assemble the conveyor belt to transport bottles smoothly through the filling line.
-
Verify alignment to prevent jams or misplacement during production.
Step 2: Set Up the Bottle Feeder
-
This unit comes pre-assembled—no additional installation is required.
-
Adjust the shelf to fit your bottle dimensions (compatible with round bottles only).
-
Watch the Bottle Feeder Adjustment Video for guidance.
Step 3: Install the Auger Feeders
-
The system includes two auger feeders for efficient powder transfer.
-
Secure the screw auger into the tank for each unit.
-
Refer to the for visual instructions.
Step 4: Connect the First Auger Feeder to the Powder Mixer
-
Match the wires (U2, V2, W2) to their labeled terminals.
-
A sensor at the mixer’s top detects powder levels—when low, it triggers the auger to refill automatically.
-
See the “Electrical Box of Powder Mixer” diagram for wiring details.
Step 5: Connect the Second Auger Feeder to the Filling Machine
-
Plug the auger’s 3-pin or 4-pin connector directly into the filling machine.
-
The system auto-feeds powder when the metering device runs low.
Step 6: Install the Capping Machine
-
Attach the vibrator to the gap feeder shelf using screws.
-
Check the reference image for proper placement.
Operation Guide
Step 1: Configure the Powder Filling Machine
-

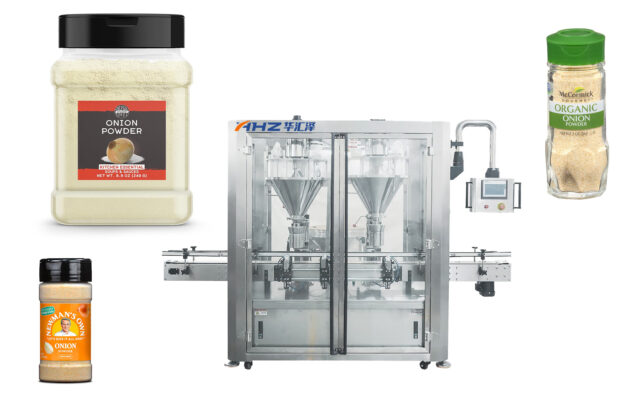

Adjust filling volume for single or double-head systems.
-
Test in manual mode before switching to full automation.
-
Touchscreen login: Password 888888
-
Watch the Filling Adjustment Video for setup steps.
Step 2: Operate the Labeling Machine
-
Load the label roll (see video guide).
-
Key Features:
-
Bottle separation for smooth labeling.
-
Waste label recycling for efficiency.
-
Adjustable label head for precision.
-
Smart sensors detect bottles and labels for accuracy.
-
Touchscreen controls for easy operation.
-
