Understanding Horizontal Packaging Technology

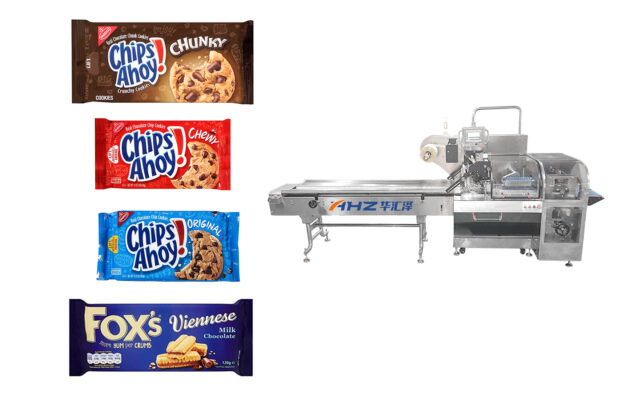

Horizontal flow wrap machines (also called automatic pillow packaging machines) have revolutionized product packaging across industries. These advanced air pillow packaging systems combine speed, precision, and versatility to create perfectly sealed packages for various products.
Step-by-Step Working Process of Horizontal Packing Machines
1. Product Loading & Conveyor Feeding
-
✔ Workers place products on the infeed conveyor belt in single-file formation
-
✔ An electric eye sensor detects each product’s position for precise timing
-
✔ The conveyor transports items at controlled speeds (40-150 packages/minute)
2. Film Feeding & Positioning
-
✔ The machine unwinds packaging film from the roll
-
✔ Film travels upward through the forming collar
-
✔ The system automatically adjusts film width to match product dimensions
3. Product Wrapping & Sealing
-
✔ Products enter the forming area where film wraps around them
-
✔ The middle sealer creates a longitudinal seal along package length
-
✔ End sealers simultaneously close and cut individual packages
-
✔ Heat settings adapt to different film materials (green=optimal, red=actual)
4. Optional Features & Customizations
-
✔ Ink wheel printers mark expiration dates and lot codes (45-character limit)
-
✔ Thermal transfer printers add barcodes, QR codes, or custom designs
-
✔ Nitrogen flushing systems preserve freshness for baked goods
-
✔ Vacuum adjustment compresses packages to minimize air content
Key Advantages of Horizontal Flow Wrap Machines
-
High-Speed Operation – Processes up to 150 packages per minute
-
Precision Sealing – Creates airtight, tamper-evident pillow packs
-
Easy Adjustments – Touchscreen controls for length, speed, and temperature
-
Material Savings – Optimizes film usage to reduce waste
-
Hygienic Design – Meets food safety standards for direct product contact
Industry Applications
-
Food Products: Cakes, bread, pizza, snacks, confectionery
-
Pharmaceuticals: Medical devices, blister packs, suppositories
-
Consumer Goods: Soaps, cosmetics, hardware items
-
Industrial Parts: Small components, spare parts
Why Choose HHZpack’s Horizontal Packaging Solutions?
-
As leading manufacturers of automatic pillow filling machines, we offer:
-
Customizable designs for unique product requirements
-
Energy-efficient operation to reduce production costs
-
User-friendly interfaces with intuitive controls
-
Durable construction with food-grade stainless steel components
